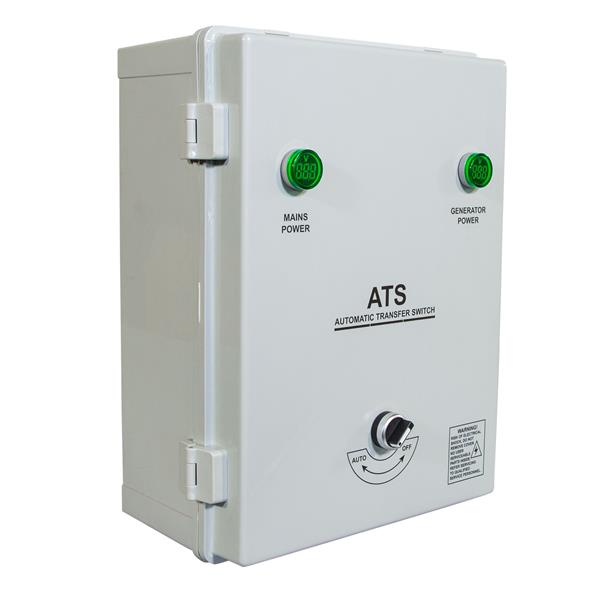

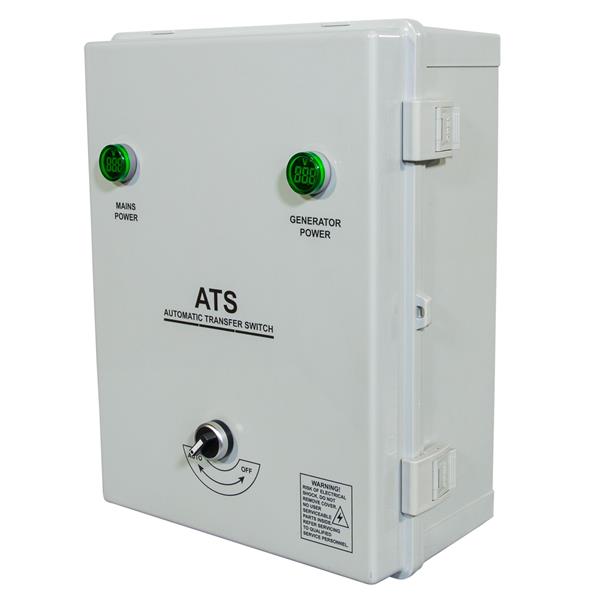

Automatic Transfer Switch ATS 400V 25A 3-Phase ITC Power AC-ATS-W-25A-3 EAN 8435528100048
The ITC Power AC-ATS-W-25A-3 is a highly reliable automatic transfer switch or ATS module specifically designed for 3-phase electrical networks. This essential device automatically transfers the power load to your standby generator during a sudden mains power failure. When the primary grid is fully restored, the ATS panel automatically shuts down the generator. It functions as the ultimate backup power solution for both residential and commercial applications.
Features and smart monitoring
This modern 3-phase 400V ATS system features a user-friendly and compact design. The built-in LCD screen provides clear, real-time monitoring of important metrics such as voltage, current, and frequency. The protected control module is thoroughly compatible with ITC Power and Hyundai backup generators.
Main benefits and specifications
-
Rated for 3-phase 400V systems with a maximum power capacity of 12 kW and 25 Amps.
-
Fully automatic power switching during blackouts or grid instability.
-
Includes a 15-meter communication cable equipped with a secure 3-pin connector.
-
Features a built-in battery charger to keep the generator operational at all times.
-
Housed in a safe and robust protected control module.
Installation and usage instructions
Mount the ATS box securely on a wall located between the main public power supply and your generator. Ensure a dedicated circuit breaker is installed at both the input and output connections. Connect the provided data cable to the generator monitor plug. Never handle any internal components while electricity is active. For optimal safety and compliance, the installation of this generator switch must be performed by a certified professional electrician.
