Hoses & Pipes REGO 9101P5 manual LPG valve 3/4"–3/8"

Details

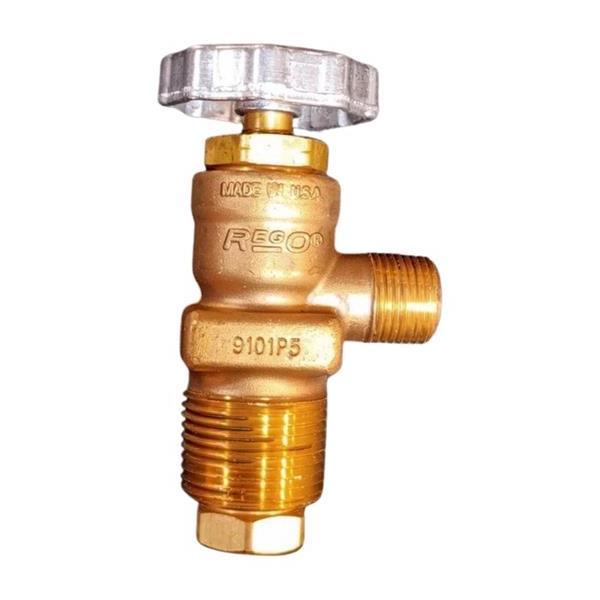

REGO 9101P5 manual LPG valve 3/4"–3/8"

REGO 9101P5 manual vapor-service valve for LPG, 3/4" NGT to 3/8" NPT, excess-flow & quick-close

The REGO 9101P5 manual service valve is a high-quality LPG valve designed for vapor withdrawal from DOT cylinders up to about 100 lb. It combines an excess-flow valve and a quick-close mechanism in one durable unit, ensuring maximum safety during gas draw-off.

Key Features

• Inlet: 3/4" male NGT

• Outlet: 3/8" male NPT

• Excess-flow function to prevent gas loss in case of line rupture

• Double-lead stem threads for fast operation

• O-ring stem seal for reliable leak protection

• Tapered seat disc for tight shut-off

• Metal-to-metal back seat for added leakage protection

Benefits

• Enhanced safety through built-in protection

• Fast and easy handling

• Durable brass/bronze body with nylon disc for long service life

• Compact, ideal for industrial and forklift use

Usage & Installation
Suitable for DOT cylinders with separate liquid withdrawal provision. For proper excess-flow operation, the valve must be fully opened and back-seated during use. Contains no internal pressure relief; use only with cylinders equipped with a separate pressure relief device.
