Injectors Telair DualClima 12500H camper AC heat pump

Details

Powerful rooftop air conditioner with heat pump for all seasons

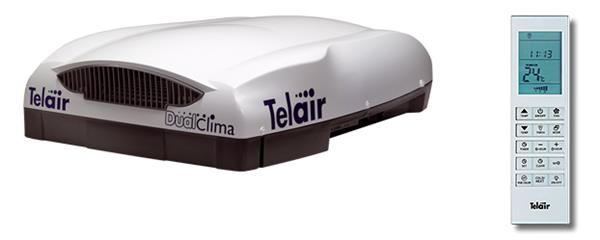

The Telair DualClima 12500H is a monoblock rooftop air conditioner featuring 3100 W cooling and a high-efficiency 3.1 kW heat pump. Specially designed for large motorhomes and caravans, it offers silent operation, excellent performance and smart automatic control.

Key Features

• Ultra-flat air diffuser with sloped design on all four sides

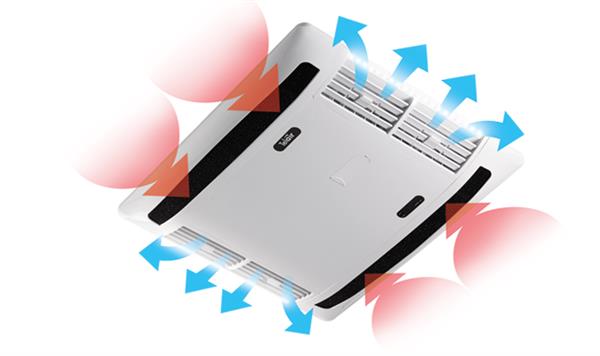

• Air outlets at front and rear, adjustable sideways and all around

• Heat pump with 3.1 kW heating capacity and only 1.52 kW power use, effective down to +4 °C outside

• AUTO mode selects the optimal function and fan speed

• Remote control with programmable timer and ON/OFF light button for the diffuser

• Anti-freeze sensors and replaceable, washable filters

• Very low noise level, inside and outside

• Suitable for roof thicknesses from 30 to 70 mm

Technical Specifications

• Cooling capacity: 3100 W

• Heating capacity: 3080 W

• Airflow: 480 m³/h

• Power consumption: 6.1 A (cooling), 5.9 A (heating)

• Power supply: 230 V – start current: 29 A

• Recommended generator: minimum 2200 W

• Exterior unit dimensions: 980 x 650 x 239 mm

• Interior diffuser dimensions: approx. 600 x 52 x 50 mm

• Weight: 39 kg

• Roof opening: 400 x 400 mm

• Refrigerant: R32

• Protection rating: IPX4

User Benefits

• Year-round comfort with integrated cooling and heating

• Quiet operation, ideal for sleeping

• Quick installation on standard rooftop cut-out

• Smart control via remote or AUTO mode

• Energy efficient, even in cold climates

Installation & Usage

The Telair DualClima 12500H fits motorhomes, vans, and caravans with a standard 400 x 400 mm roof opening. Thanks to its monoblock design, it is easy to install. Washable filters and anti-frost sensors ensure minimal maintenance.

Order online or install in our workshop
Place your order directly or plan a professional installation in Eeklo. Contact us for a quote or appointment.
