Connections T-piece compression fitting 10x8x8 mm GOK

Details

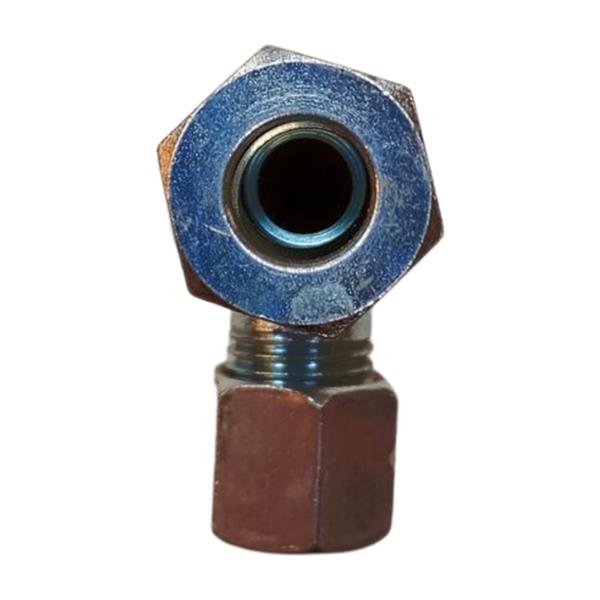

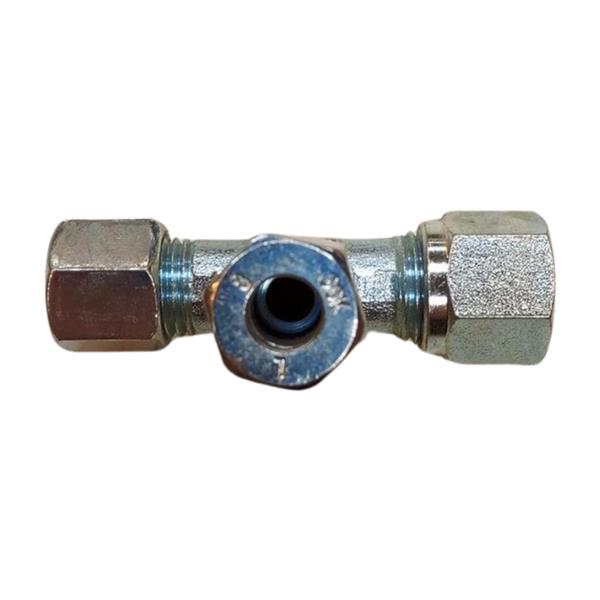

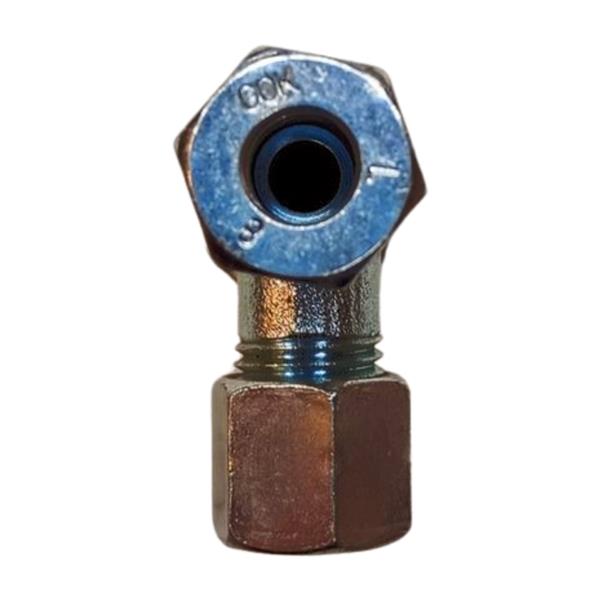

Reducing T-piece compression fitting 10x8x8 mm for copper pipe – GOK part no. 0774900 type TR

Description of the fitting
The GOK 10x8x8 mm T-piece compression fitting is part of the GOK L-series type TR range, designed for copper tubing used in LPG, natural gas, compressed air, and hydraulic systems. This reducing T-fitting connects three pipes of different diameters securely. The 10 mm outlet is positioned on the side of the fitting.

Technical specifications and compatibility

• Type: reducing T-piece compression fitting

• Brand: GOK

• Part number: 0774900

• Size: 10 x 8 x 8 mm

• Connection type: compression fitting

• Standard: EN ISO 8434-1 – RDBTC/RDRTC

• Material: high-quality brass

• Series: GOK L-series TR type

Key benefits

• Gas- and liquid-tight connection for copper lines

• No soldering required – easy to install

• Corrosion-resistant brass construction

• Suitable for LPG, CNG, water, and air applications

• Perfect fit for 8 mm and 10 mm copper pipes

Installation and use
Insert the copper tube straight into the compression nut and tighten evenly with a wrench until fully sealed. Always check for leaks using a suitable leak detector. Ideal for use in LPG systems, motorhomes, boats, and industrial piping where 8 mm and 10 mm copper pipes must be connected.
