LPG Valves & Accessories Electronic acquisition tap VALTEK BFC (large power)

Electronic acquisition tap VALTEK BFC (large power)
120003-30-V-74.LPS.07

Electronic acquisition tap VALTEK BFC (large power)

€ 54.07

 In shopping basket

On stock

Details

  • Electronic valve to be fitted on the LPG tank
  • High output, can be used both for a small as for a big engine
  • With wire

Electric LPG Outlet Valve VALTEK 74 BFC 5/16" SAE - 4-hole tank valve for LPG tank

This tank valve has an extra-large opening for faster LPG withdrawal and is suitable for use on a 4-hole LPG tank/gas bottle. The outlet valve can be used in conjunction with 6mm/8mm LPG outlet pipes.

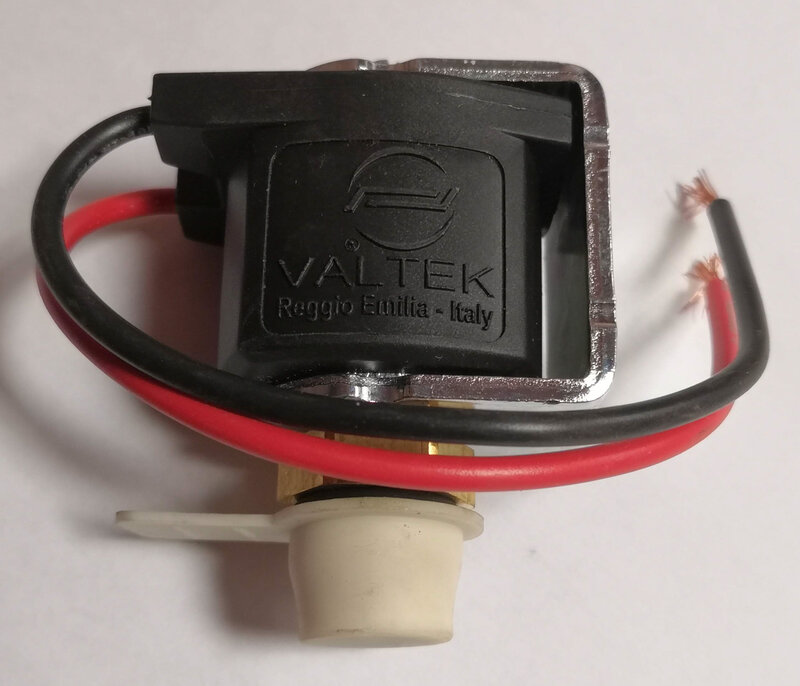

This electric LPG outlet valve (tank valve) features an integrated Normally Closed flow limiter and an extra-large opening. The inlet has a size of 1 1/16 NPT (26.5 mm), while the outlet has a 5/16 SAE - 1/2-20 UNF 45° Flare Male (12.5 mm) size. The valve has a 12V 11W electric coil and a maximum pressure of 30 bar.

The function and application of this electric LPG outlet valve are to close (normally closed) and open the outlet of an LPG tank, vapor tank, or gas bottle upon request using an electric signal. This type of tank valve is suitable for 4-hole tanks with 1 1/16 NPT threading. An LPG pipe of 6 mm or 8 mm can be connected to the outlet of the tank valve using a Flare connection.

It is important to use sufficient sealing tape (teflon tape) when mounting the tank valve on the tank.

The tank valve is suitable for both 8mm and 6mm pipes. Please note that the correct coupling nut is not included and should be ordered separately with the LPG pipe.

Homologation: E4-67R-010043
